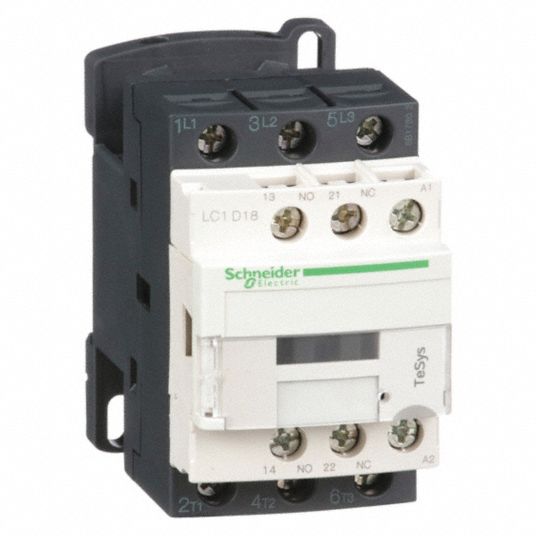

24V AC IEC Magnetic Contactor; No. of Poles 3, Reversing: No, 18 A Full Load Amps-Inductive

Model #LC1D18B7

Country of Origin Indonesia. Country of Origin is subject to change.

For use in industrial motor control applications and suitable for DIN rail or panel mounting. You can combine a contactor with an overload relay to make a complete motor starter. Model comes with saddle clamp terminals, inclined wire guides, captive screws, and is IP20 touch-safe with removable terminal cover. Designed for a mechanical life of 15 million operations. Contactor includes built-in auxiliary contacts.

Compare this product

Technical Specs

• Item IEC Magnetic Contactor
• Full Load Amps-Inductive 18 A
• Full Load Amps-Resistive 32 A
• Number of Poles 3
• Coil Volts 24V AC
• Reversing No
• HP @ 1 Phase - 120V 1 hp
• HP @ 1 Phase - 240V 3 hp
• HP @ 3 Phase - 208V 5 hp
• HP @ 3 Phase - 240V 5 hp
• HP @ 3 Phase - 480V 10 hp
• HP @ 3 Phase - 575V 15 hp
• Aux. Contact Configuration 1NO/1NC
• Enclosure NEMA RatingNo Enclosure
• Hz 50/60
• Height 3.03 in
• Width 1.77 in
• Depth 3.38 in
• Standards CSA, UL
• Frame / Series / Class / CodeTeSys.
