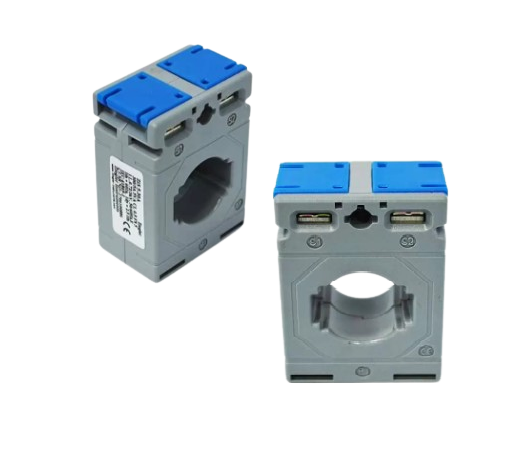

Ziegler Current Transformer, 2400/5A CL0.2s Zis 14.10HC 5VA

BRAND: ZIEGLER

A device that safely measures AC by bringing excessive currents down to a reasonable level.

Item Code: AMSG-3335

Categories : Current Transformer

Tags : Current Transformer

Cash on delivery available

Return allowed

Sort By:

SlNo	Item code	Product details	Unit	QTY	Unit price	T. price	Action
1	AMSG-3335-1	Ziegler Current Transformer, 2400/5A CL0.2s Zis 14.10HC 5VA, Ratings: 2400/5 A, BUSBAR SIZE: 101 x 31 mm, Brand: Ziegler	Pcs		AED 376.43	AED 376.43

An electrical tool for measuring alternating current (AC) is called a current transformer (CT). For secure and precise measurement, it lowers large currents to a bearable level.

The portion of the transformer carrying the highest current is called the primary winding. Usually, just one wire or conductor is seen going through the center of the transformer.
Secondary Winding This winding is used for monitoring or measuring and carries a lesser, proportionate current. It is linked to safety relays or meters.
Magnetic Core Constructed from silicon steel laminates, it offers the magnetic flux produced by the main current a low-reluctance path.
Insulation Maintains safety and averts electrical problems by guaranteeing electrical isolation between the primary and secondary windings.
