Thermostat Suppliers in UAE

Thermostat

Thermostat is a device that detects temperature changes in order to keep the temperature of a closed space essentially constant. The thermostat creates signals, usually electrical, when the temperature exceeds or falls below the intended value in a system that includes relays, valves, switches, and other components.

Show All Items

Sort By:

Item Code

Product Detail

Unit

QTY

Unit Price

T. Price

Add to Enquiry

AMSG-3453-1

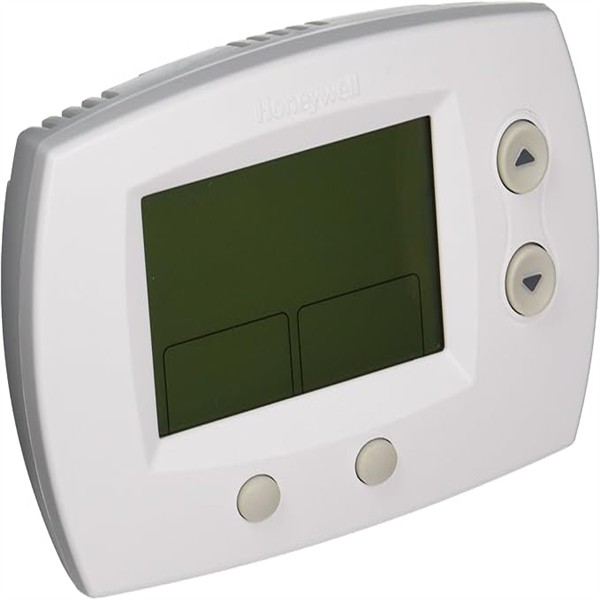

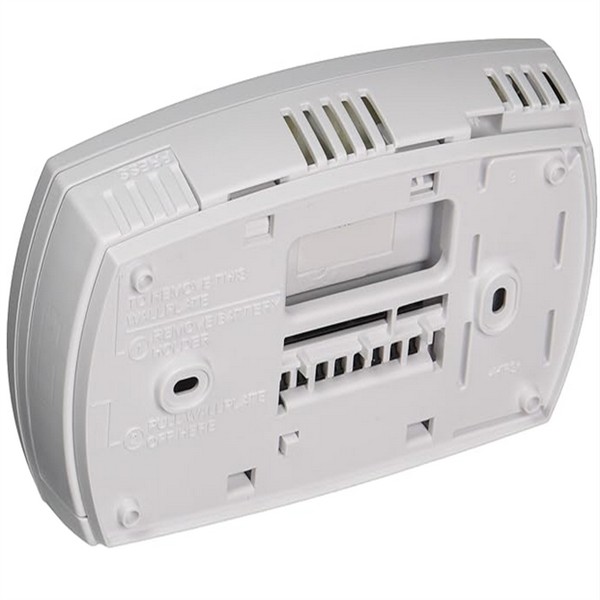

Thermostat - 2 Stage TH5220D1029
Brand: Honeywell

Pcs

AED 255.15

General:

Brand: Honeywell Home (Resideo)
Series: FocusPRO 5000
Model Number: TH5220D1029 / TH5220D1029/U
Type: Digital, Non-Programmable
Stages: Up to 2 Heat / 2 Cool Conventional Systems; Up to 2 Heat / 1 Cool Heat Pumps
Power: Dual Powered: Battery (2 x AA alkaline) or Hardwired (20-30 VAC or 750 mV)
Mounting: Horizontal
Display: Large (5.09 sq. in.), Clear, Backlit
Color: Premier White®

Performance:

Accuracy: ±1°F (±0.5°C)
Temperature Setting Range:
- Heat: 40°F to 90°F (4.44°C to 32.22°C)
- Cool: 50°F to 99°F (10°C to 37.22°C)
Operating Humidity Range: 5 to 90% RH, non-condensing
Cycles per Hour (CPH):
- Heating: 1 - 12 CPH (depending on system type)
- Cooling: 1 - 6 CPH
Auto Changeover: Yes (automatic switching between heating and cooling)
Built-in Compressor Protection: Yes (delay to prevent rapid cycling)

Electrical:

Electrical Rating: 20 to 30 VAC or 750 mV
Frequency: 50 Hz; 60 Hz
Fan Switching: Auto / On
Terminal Designations: R, RC, C, W-O/B, G, Y, W2-AUX/E, Y2-L

Physical:

Dimensions: 3 9/16 in. High x 5 13/16 in. Wide x 1 1/2 in. Deep (91 mm High x 147 mm Wide x 38 mm Deep)
Weight: Approximately 0.9 lbs (thermostat only)

Features:
